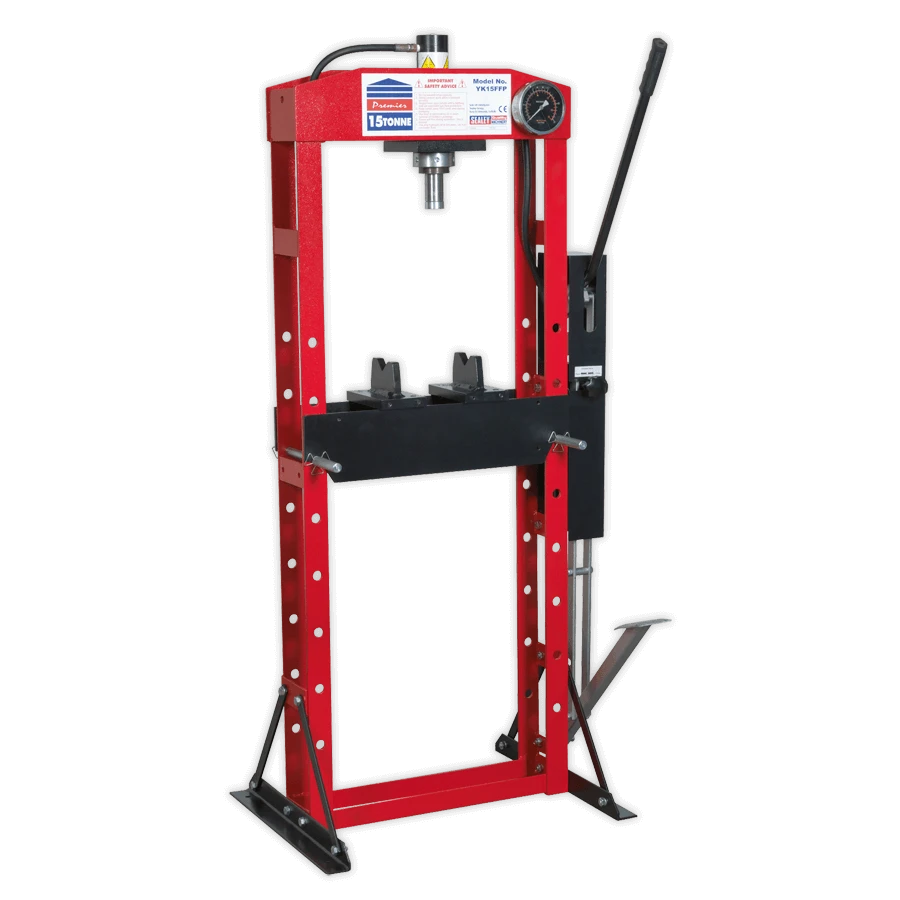

- Heavy-duty steel frame construction with speed/torque adjustable hydraulic pump unit featuring manual handle and foot pedal.
- Sliding hydraulic ram assembly gives 160mm of lateral travel for off-centre pressing applications.
- Frame head fitted with ram pressure gauge.
- Supplied with flat pressing plate/V-blocks.
| Model No: | YK15FFP |
| Bench or Floor Mounting: | Floor |
| Type: | Hydraulic |
| Capacity: | 15tonne |
| Ram Stroke: | 160mm |
| Ram Diameter: | Ø40mm |
| Lateral Ram Travel: | 160mm |
| Maximum Height – Ram to Table: | 980mm |
| Minimum Height – Ram to Table: | 168mm |
| Table Aperture: | 138mm |
| Working Table Depth: | 154mm |
| Working Table Width: | 550mm |
| Overall Height: | 1591mm |
| Gauge Included: | Yes |
| Working Pressure: | – |
| Air Consumption: | – |
| Weight: | 103kg |
| Safety Guard (Optional): | – |
