- For a small premium over the cost of a bench drill, you can avoid tying up valuable bench space.

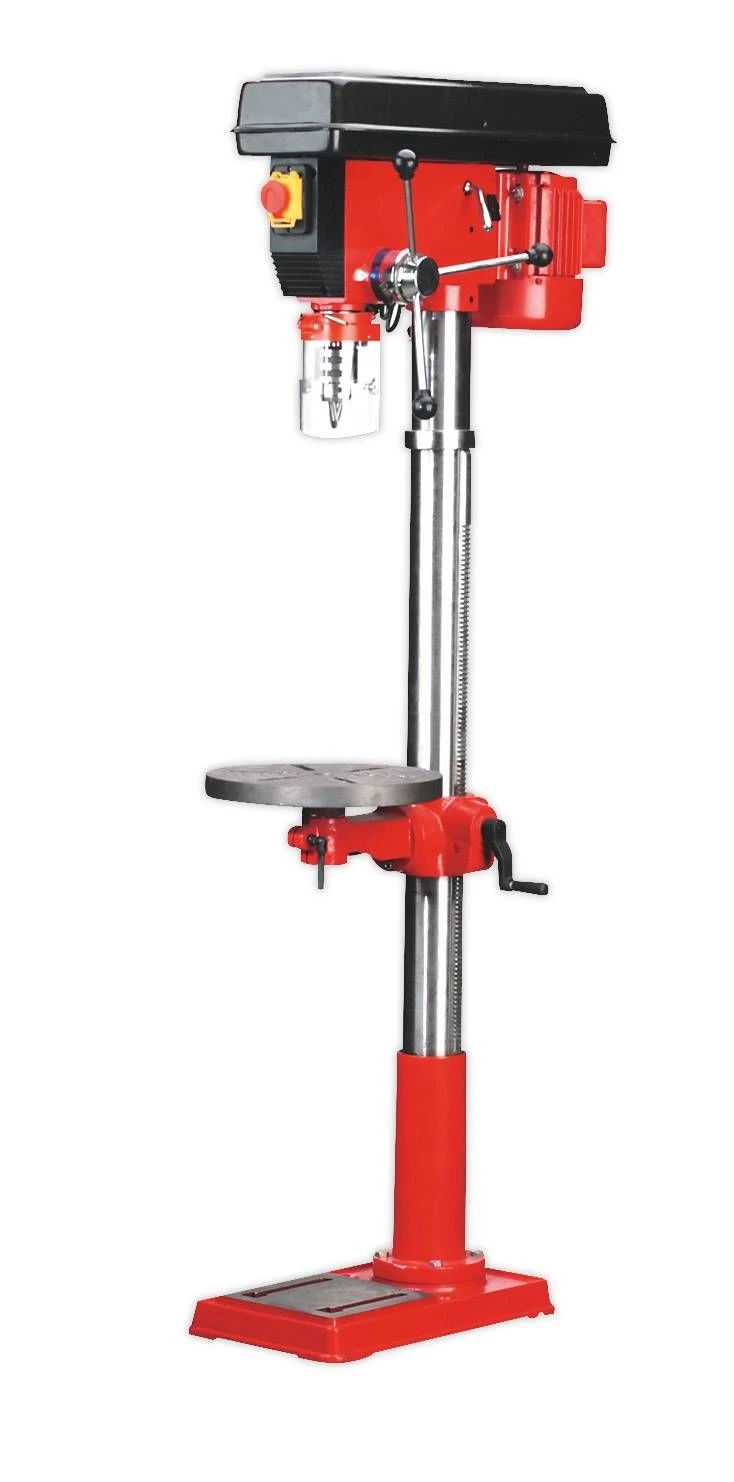

- This floor standing drill has adjustable tilting table and rise and fall height adjustment by rack and pinion.
- All models are fully CE certificated and approved for use in educational establishments and the industrial workplace.
| Model No: | GDM200F |
| Drilling Capacity (Chuck Size): | 16mm |
| Spindle Nose Taper: | MT2 |
| Swing: | 436mm |
| Spindle Centre to Column: | 178mm |
| Spindle Travel: | 80mm |
| Number of Speeds: | 16 |
| Speed Range: | 120-3000rpm |
| Maximum Distance Spindle to Table: | 800mm |
| Maximum Distance Spindle to Base: | 1230mm |
| Working Table Surface Size: | Ø310mm |
| Working Base Surface Size: | 205 x 205mm |
| Overall Base Size: | 460 x 275mm |
| Column Diameter: | Ø80mm |
| Collar Diameter: | Ø60mm |
| Overall Height: | 1630mm |
| Motor Power (Start): | 450W (650W) |
| Supply: | 230V |
| Weight: | 68kg |
| Optional Keyless Chuck 16mm: | GDMX/KC |
